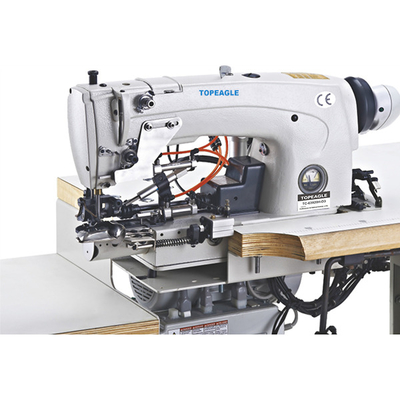

TOPEAGLE TC-63920-D4 single needle lockstitch bottom hemming jeans sewing machine price TC-63920-D4

TOPEAGLE TC-63920-D4 single needle lockstitch bottom hemming jeans sewing machine price

Features:

TC-63920-D4 Lockstitch cylinder bed machine with a synchronous puller close behind the needle, continuously operating up and down.

Small cylinder bed Small cylinder arm 200mm for hemming for trousers bottom and sleeve.

Can be do lock stitches and chain stitches

Top and bottom roller feed and needle feed mechanism.

-D3 with pneumatic control automatic bottom hemming machine with automatic thread trimmer and automatic foot lifter.

Suitable for work clothes, jeans wear and leisure wear.

Details:

The machine adopts newly developed automatic cloth rolling and guiding device on the basis of original automatic thread trimming and presser foot lifting functions.

The needle bar stroke is as high as 35mm. This offers increased penetration of the needle into the material to improve adaptability to heavy-weight materials.

The machine demonstrates excellent sewing capabilities, when sewing heavy-weight denim or multi-layered portions, that free it of sewing troubles such as stitch gathering, stitch skipping and needle breakage.

Accurate start and finish of sewing in relation to side and felled seams by photocell provides exact positioning of hem joint.
The machine is able to sew material with a low presser foot pressure while preventing the material from flapping. As a result, the material can be sewn free of puckering.

Overlapping of hem joint start and finish seam can be programmed from control panel. Operators can focus on next piece while the machine is sewing.

It can improve productivity and release working pressure. Adjustable stitch length from control panel eliminates the need to mechanical change of gears.

The top- and bottom-roller style feed mechanism forms seams with increased consistency to achieve improved hemming quality while reducing uneven hems.

Small cylinder arm 200mm, hemming width of the hemming guide 12.7mm.

Applications:

TOPEAGLE TC-63920 is suitable for hemming trouser bottoms and sleeves on jeans wear, work clothes and leisure.

Machine sets:

Ralated Model:

TC-63900 Lockstich bottom hemming machine

TC-63920-D4 Pneumatic full automatic lockstitch bottom hemming machine

TC-63920-D4 Pneumatic full automatic interchange bottom hemming machine

TC-63922-D4 Pneumatic full automatic lockstitch and chanstitch interchange bottom hemming machine

Tecnical data:

TOPEAGLE INTERNATIONAL LTD is one of the main supplier for industrial sewing machines in China. We have been cooperating with the leading sewing machine manufacturers in the world, our brand name is TOPEAGLE. We supply the full range industrial sewing machines with top quality and top service, our products cover garment manufacturing, shoe making, home upholstery and automotive industries.
Except our own machines, we can supply the original JUKI, BROTHER, DURKOPP ADLER, PFAFF, PEGASUS, SINGER etc. to meet the customer’s different demands.

1. Q: Is machine sample available?

A:No. We can supply spare parts sample, but customer needs to pay for it and bear shipping cost, we will return the parts value once order confirmed.
2. Q: What service you can supply?

A: Model recommendation, sample making, technical consulting, after-service support
3. Q: Do you supply overseas installation and debugging?
A: Yes, but customer needs to bear all overseas expenditure.
4. Q: Do you supply spare parts?

A: Yes, and with fast lead time.
5. Q: What gurantee you supply?

A: Limited spare parts one-year guarantee, not including quick-wear parts like needle, looper, throat plate.
